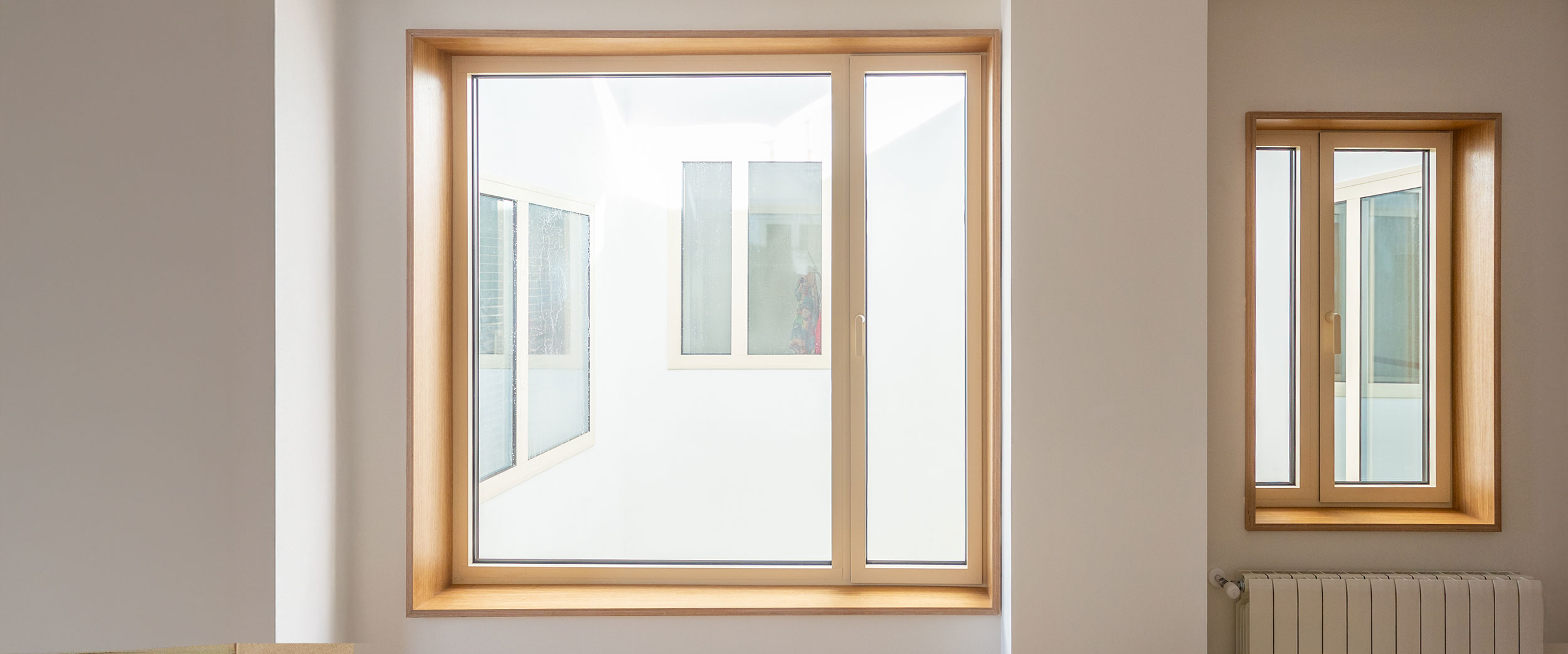

System of hinged doors and windows 70 mm frame deep and 42 mm maximum glazing capacity.

Its 5-chamber profiling in the frame and sash features a great energy efficiency with thermal transmittance values from 0,9 W/m2K, becoming the suitable window to ensure compliance with the most demanding standards applicable to any climatic area.

Features two looks in the sash design: semi-flush and straight.
Performance characteristics
Air permeability
CLASS 4
Watertightness
E1500
Wind resistance
C5
Soundproofing
Rw ≤ 46 dB
Thermal transmittance
Uw ≥ 0,9 W/m2K
Dimensions
Glazing

Maximum: 42 mm

Maximum weight per sash

130 kg

Characteristics
Sections
Frame: 70 mm
Sash: 70 mm / Sash: 78 mm
Maximum dimensions per sheet:
WINDOW  Width(L): 1300 mm  Height(H): 2300 mm
*Conceived with leaf divider profile.
BALCONY  Width(L): 1300 mm  Height(H): 2400 mm
DOOR  Width(L): 1300 mm  Height(H): 2500 mm
